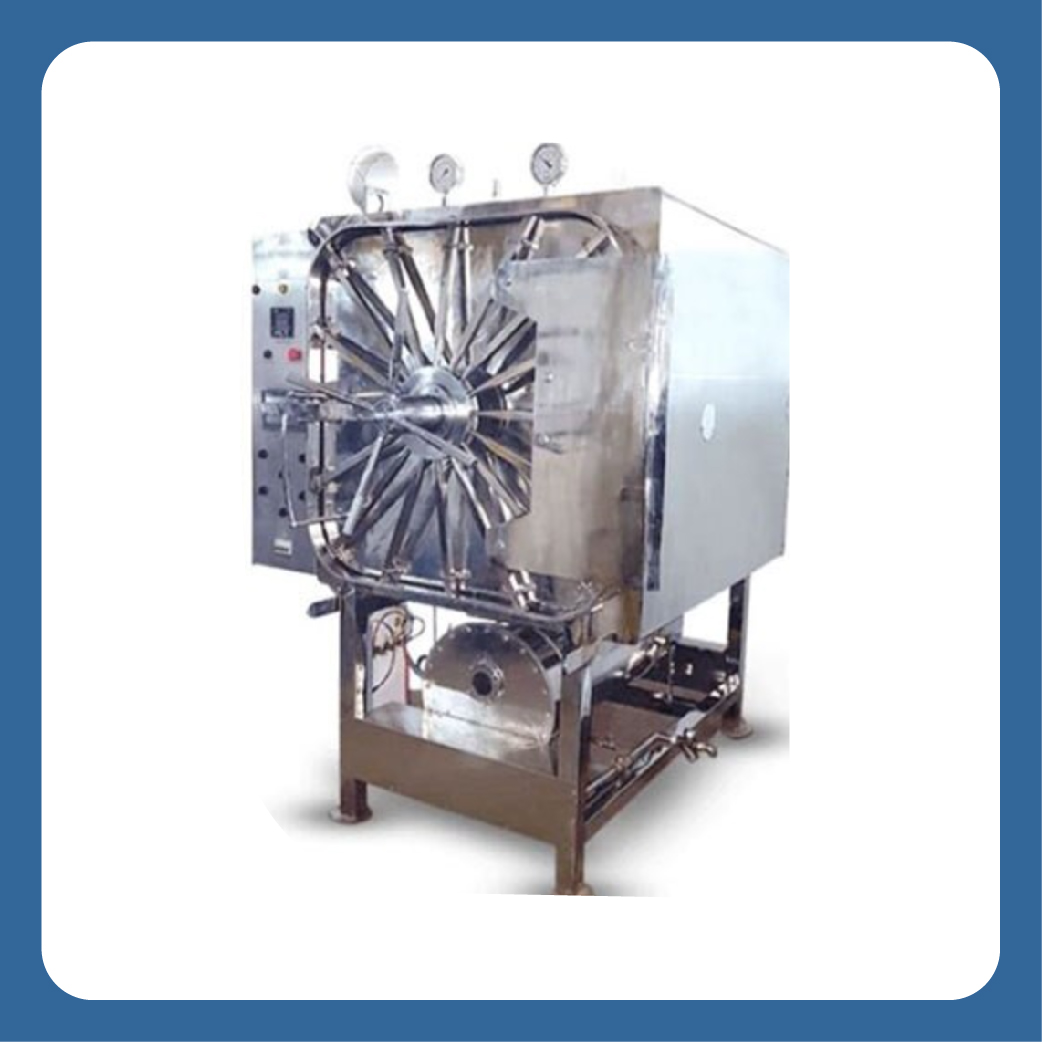

Semi Automatic Horizontal Rectangular Steam Sterilizer Machine

Specification: -

Safe stainless-steel doors with redial locking arrangement
Digital temperature controller
Electrical system designed as per international standers with highest level of safety.
Stainless-steel Pipeline for Long Life and Superior Hygiene
Automatic Pneumatic Valves with non-Corrosive body for effortless operation.
One-piece temperature and pressure resistant silicon gasket.
Insulated chamber and steam generator for minimal heat loss and high energy conservation.
Energy efficient electric steam generator with automatic pressure control switch.
Optional Boiler dozing system with intelligent level control for feeding RO water in the steam generator.
High-capacity vacuum pump for effective air removal and excellent draying.

Technical Specifications

Model	Inner Dimension	Liter	Heater Load
DMSI HRFA-180	18'' x 18'' x 36''	180L	18 kw
DMSI HRFA -240	18'' x 24'' x 36''	240L	18 kw
DMSI HRFA -320	24'' x 24'' x 36''	320L	18 kw
DMSI HRFA -430	24'' x 24'' x 48''	430L	18 kw
DMSI HRFA -540	24'' x 24'' x 60''	540L	24 kw
DMSI HRFA -650	24'' x 24'' x 72''	650L	27 kw
DMSI HRFA -1000	30'' x 36'' x 60''	1000L	27 kw
